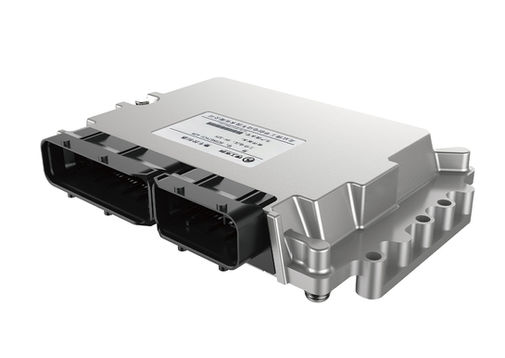

Vehicle Control Unit
HCDN67VCU-42
Vehicle Control Unit
HCDN67VCU-42
-
Main Chip: 32-bit MPC5744 Automotive Class MCU
-
Main frequency 200MHZ, Flash 2.5M
-
SRAM384K EEPROM 96K
-
Communication: 3-way CAN
-
Input: 7-way analog collection, 12 high effective switch, support 2 ways to wake-up, 12 low effective switch, support 1 way to wake up, 2 PWM input
-
Output : 12 high-side drives, 2 PWM outputs supported, 16 low-side drives, 2 PWM outputs supported
-
Other Feature:
-
Supply voltage 12/24VDC(9-32). Protection class IP68, Operating temperature -40℃ to 85℃, Supports software power-down hold
-
121 Pin Plug-in
Die-cast aluminum shell , weight < 0.85kg
Dim: 205×149×40 mm
Includes Bosch SMI130 gyroscope (optional)
Rich Function
With differential control, active safety control, Hill start assistance, vehicle crawling, vehicle condition monitoring, intelligent network and many other unique features, it enhances the driving experience.
Strong commonality
Having rich resources of the hardware interface, perfect control logic of software, can be customized to meet the needs of different customers.
Remarkable performance
The whole machine adopts 21 bit auto level chip, with a good ability of computing, what’s more, which has the fusion model prediction, the sliding mode control strategy and the ideal dynamic response performance.
Safe and reliable.
It is designed according to TS16949 standard, reaching IP67 level of protection. Products meet the requirement of MEC related national standards, and pass through salt spray, vibration, constant temperature and humidity environment adaptability test.
Convenient Maintenance.
Can easily update bootloader program based on CCP protocol. The company even provides self-developed calibrating parameters and fault diagnosis software, making it easy to operate and maintain.
Perfect services
The company has multiple technical service stations and resident engineer team, able to provide you with perfect rapid technical service.
